Lab 1: FPGA and MCU Setup and Testing

Introduction

In this lab, a design was implemented on the FPGA to demonstrate the functionality of the on-board high-speed oscillator by blinking one of the on-board LEDs. The high speed oscillator was configured at a frequency of 48 MHz and divided down using a counter to achieve a blinking frequency of 2.4 Hz.

Furthermore, this design used 4 switches as inputs. These switches turned on an on-board LED by acting as a XOR gate and turned on another on-board LED by acting as an AND gate.

Finally, this design used the same four switches, acting as a four bit binary number, to turn on a seven-segment display to show all hex digits from 0 to F.

Design and Testing Methodology

Design Methodology

This design consists of two lower level modules, which control a seven segment display and on-board LEDs. Both of these modules were called within a top level module.

The seven-segment module uses a case statemnt to map 4 bit hex digit inputs to its corresponding seven-segment output. As a result, flipping switches s[3:0] would display the correct hex digits ranging from 0 to F.

The LED control module was used to blink on-board LEDs. First, the on-board high speed oscillator (HSOSC) was used to generate a 48 MHz signal. Then, a counter set to 20 million was used to divide the clock signal. As a result, led[2] was toggled on and off at a frequency of 2.4 Hz. The other two LEDs were toggled using switches s[3:0]. The first led, led[0], was turned on by the XOR of s[0] and s[1]. The second led, led[1], was turned on by the AND of s[2] and s[3].

Finally, the top level design uses the switch inputs s[3:0] to control logic from the seven-segment and led control modules.

Testing Methodology

Testing this design was done via simulation and hardware verification.

First, all lower level modules were tested on their own to make sure all possible inputs work. Then, for simulation of the top module I made sure to test all posible inputs for lower level modules to make sure they interacted properly.

For hardware verification, I was able to verify that it functioned as expected by visually confirming correct hex digit representation using hardware. I was also able to verify that the LEDs lit up properly with visual confirmation.

Technical Documentation:

The source code for the project can be found in the associated GitHub repository.

Block Diagram

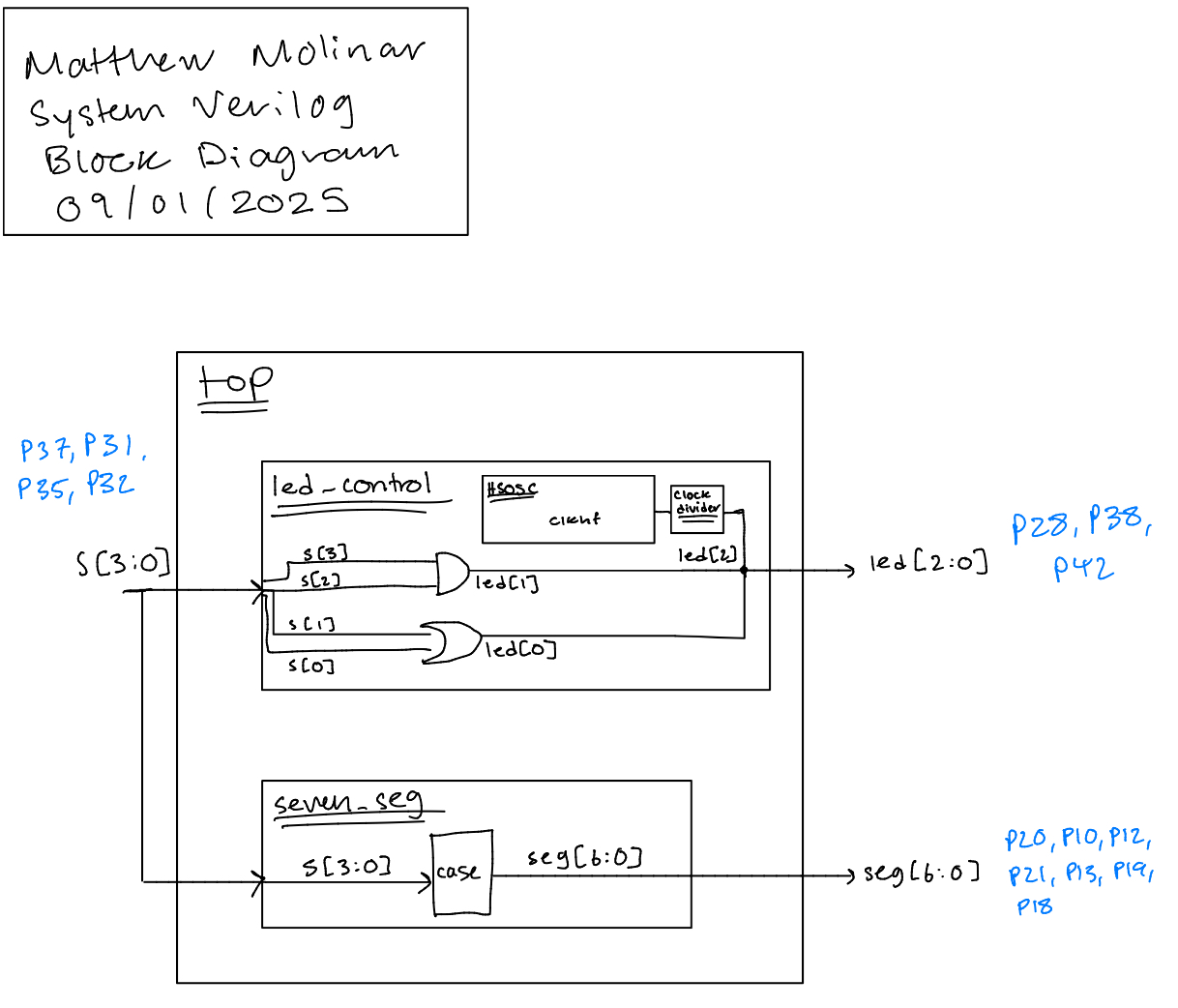

(Figure 1: Block Diagram of the Verilog Design)

The block diagram in Figure 1 demonstrates the overall architecture of the design. The top-level module, top, includes two submodules: the led control module (led_control) and the seven segment display module (seven_seg).

Schematic

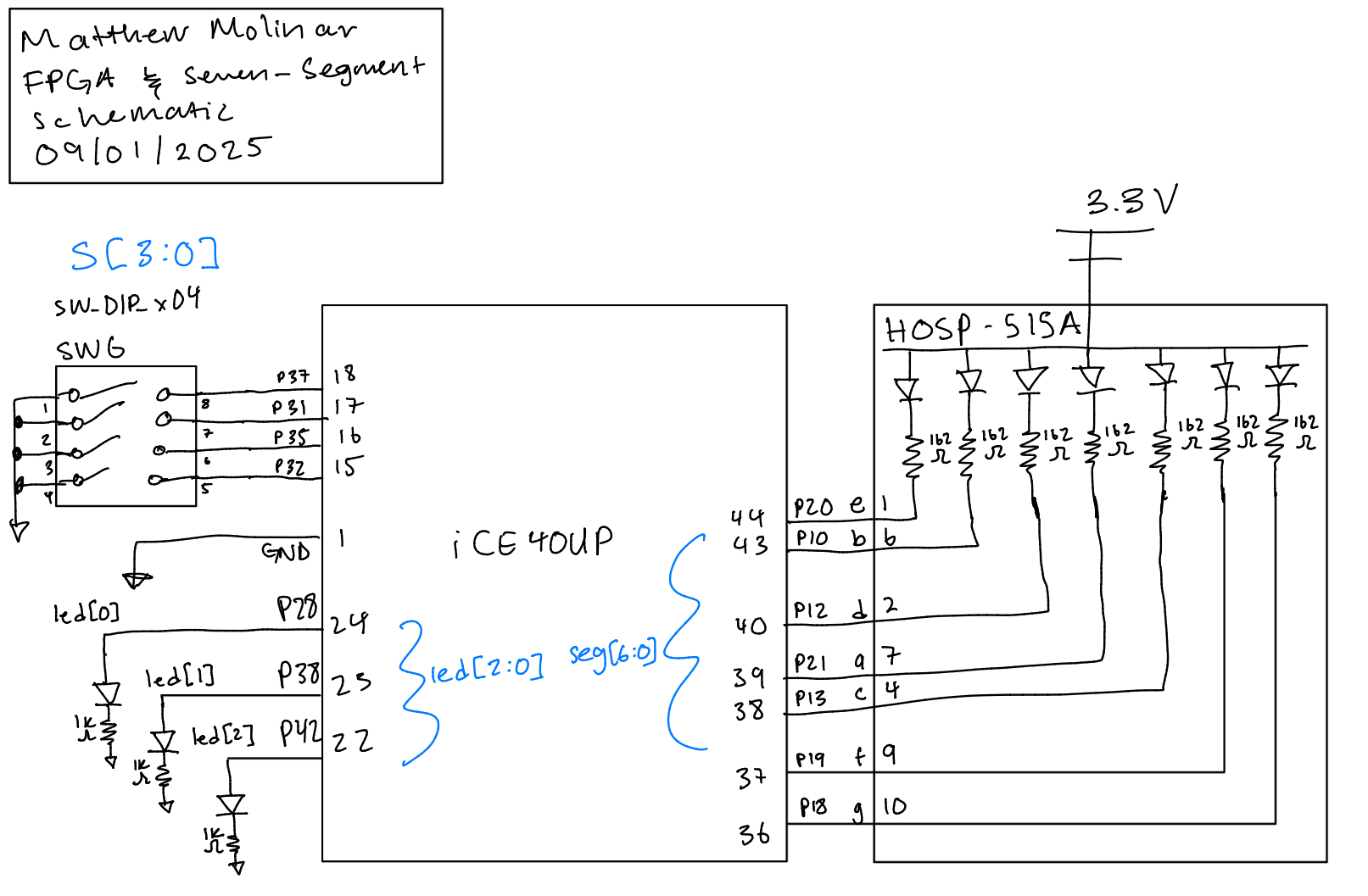

(Figure 2: Schematic of physical layout)

Figure 2 shows the physical layout of the design. The seven-segment display was connected using 162 Ω current-limmiting resistors to ensure the output current was about 8 mA. This was calculated using ohms law. The board is being powered with 3.3 V, and the display LEDs (deep red) have a forward voltage of 2 V. Therefore, (3.3 - 2 V) / 162 Ω is ~ 8 mA.

Results and Discussion

Test Bench Simulation

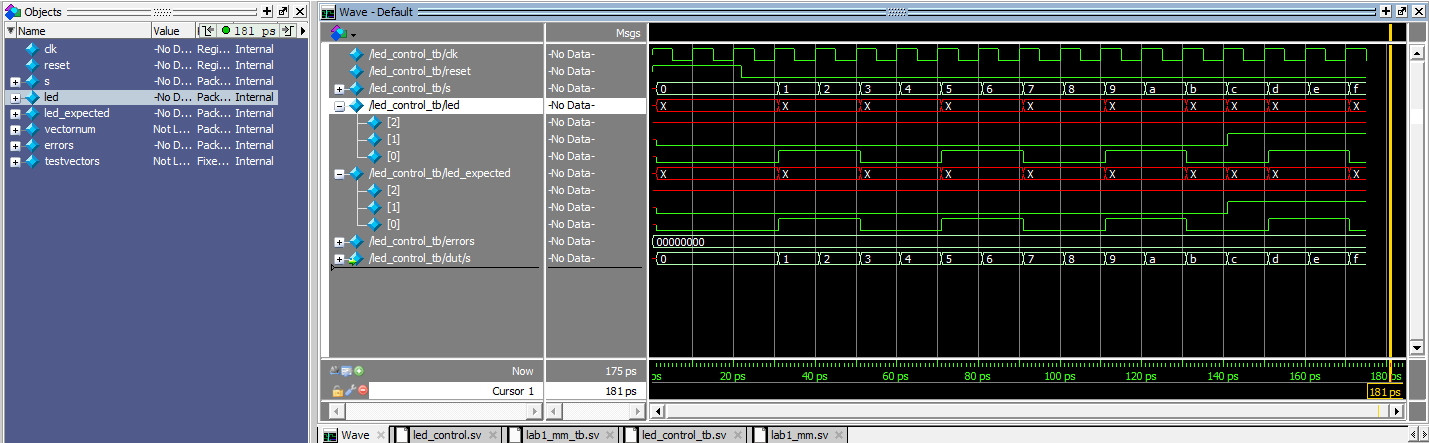

(Figure 3: A screenshot of a QuestaSim simulation demonstrating accurate control and behavior of the LEDs.)

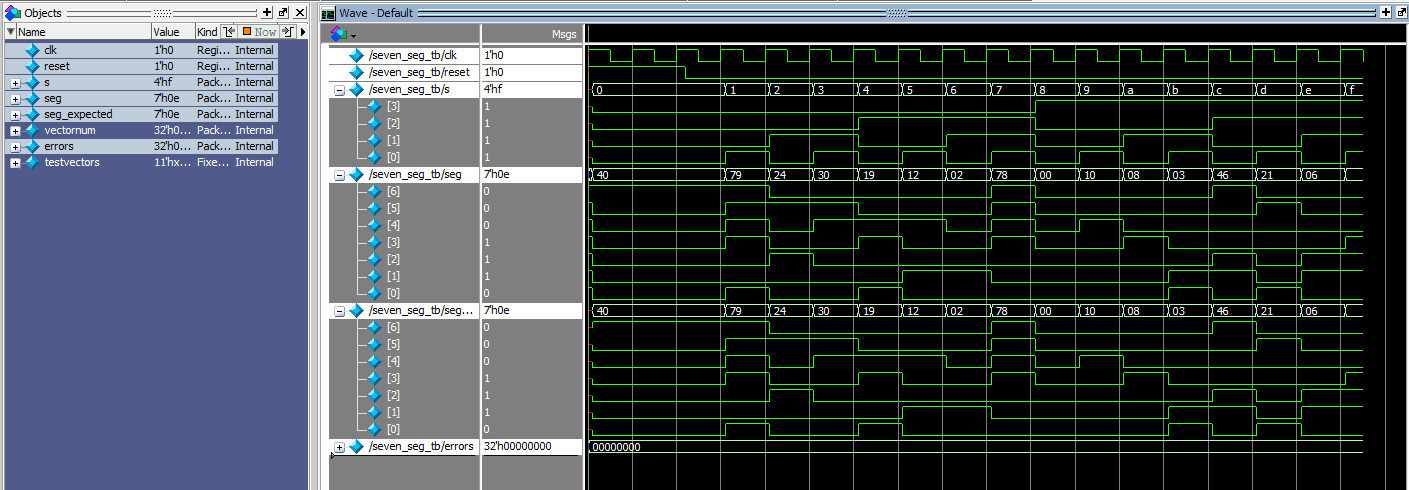

(Figure 4: A screenshot of a QuestaSim simulation demonstrating proper driving of the seven-segment display.)

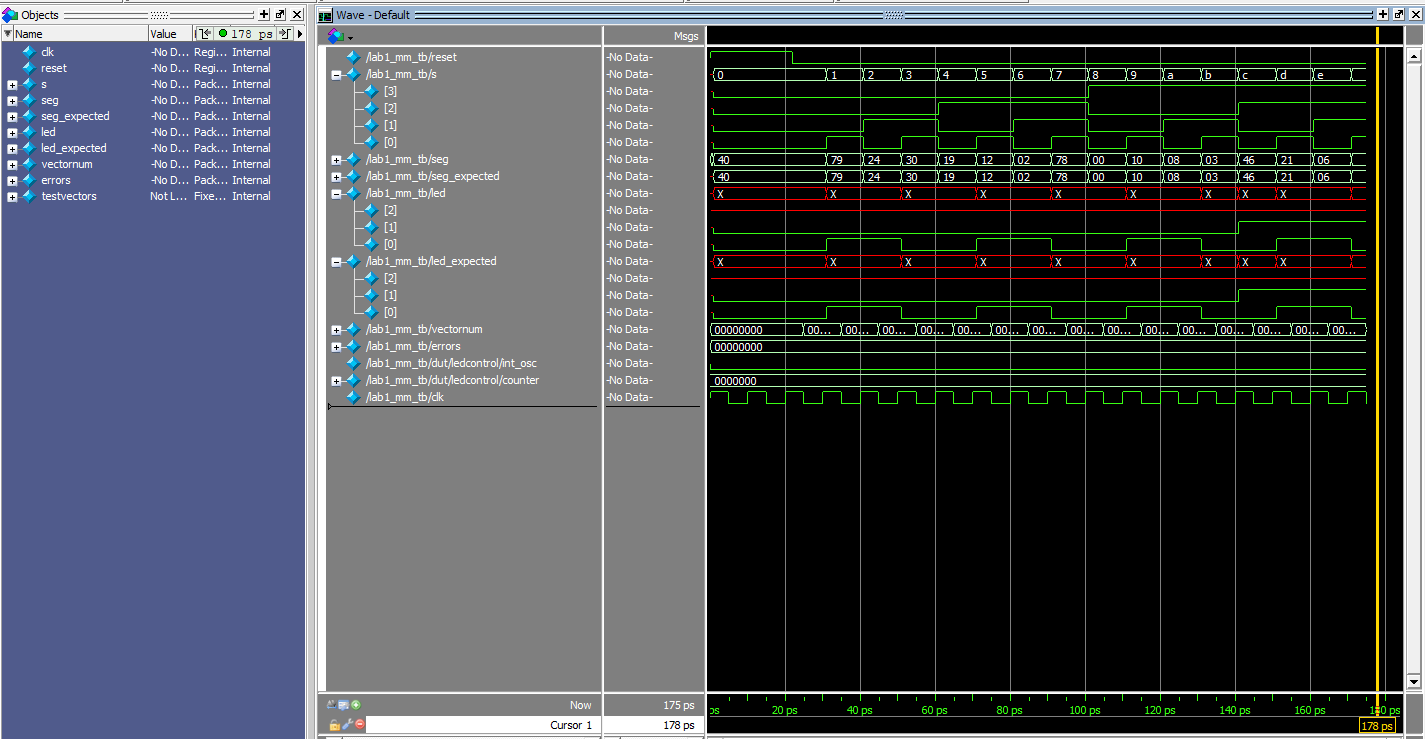

(Figure 5: A screenshot of a QuestaSim simulation demonstrating that all sub-modules works together accurately within the top module.)

The design met all intended design objectives. Figure 3 shows that the led_control module works as intended. Any red signals are just don’t cares (x’s) for one of the LEDs. Figure 4 shows that the seven_seg module works as intdended and that I’m able to drive a seven-segment display as intended. Finally, Figure 5 shows that the top module works as intended and that it accurately merges all sub-modules. Again, any red signals are just don’t cares (x’s) from one of the LEDs.

Hardware Verification

Hardware was also tested via visual confirmation of the on-board LEDs and the seven-segment display lighting up as intetned when switches were flipped in different configurations.

Conclusion

The design succesfully blinked an on-board LED at 2.4 Hz, toggled on-board LED’s based on XOR and AND gate behavior, and displayed hex digits from 0 to F on a seven-segment display. I spent a total of 15 hours on this lab.

AI Prototype Summary

For the following AI Prototype, I will be using ChatGPT.

Prompt

Write SystemVerilog HDL to leverage the internal high speed oscillator in the Lattice UP5K FPGA and blink an LED at 2 Hz. Take full advantage of SystemVerilog syntax, for example, using logic instead of wire and reg.

Generated Code

// Blink an LED at 2 Hz using the internal HFOSC of the UP5K
module top (
    output logic led   // drive LED pin
);

    // Internal oscillator (HFOSC) primitive
    logic clk_hf, clk_en;

    // Lattice UP5K HFOSC instantiation
    // CLKHF_DIV: "0b00" = 48 MHz, "0b01" = 24 MHz, "0b10" = 12 MHz
    // Here we choose 12 MHz to make the divider smaller.
    HSOSC #(
        .CLKHF_DIV("0b10")  // 12 MHz
    ) u_hfosc (
        .CLKHFPU(1'b1),     // power up
        .CLKHFEN(1'b1),     // enable
        .CLKHF(clk_hf)      // clock output
    );

    // Parameters for blink frequency
    localparam int CLK_FREQ_HZ = 12_000_000;   // HFOSC = 12 MHz
    localparam int BLINK_HZ    = 2;            // desired blink rate
    localparam int HALF_PERIOD = CLK_FREQ_HZ / (2 * BLINK_HZ);

    // Counter for frequency division
    logic [$clog2(HALF_PERIOD)-1:0] counter;

    // LED toggle logic
    always_ff @(posedge clk_hf) begin
        if (counter == HALF_PERIOD-1) begin
            counter <= '0;
            led <= ~led;
        end else begin
            counter <= counter + 1;
        end
    end

endmodule

Reflection

I think the quality of the output is really high because it produced very clean and readable code. I was mostly able to follow the code that was generated, however, it used syntax such as localparam and $clog2 that was new to me. Surprisingly, the LLM-generated code synthesized first round. I think this was largely due to the prompt that it was fed. Thus when using LLMs in my workflow I will make sure to be as descriptive as possible. Next time however, I will make sure to ask about specifc syntax that it’s using that I am not familiar with.
